Image does not show when using Lookup as source

Report a Bug
1

My app’s URL: https://garrylsf.glideapp.io/

Hey Guys,

I have a form where I want to display an image.
I have a relation to the tab I want to take the image from and I created a lookup to get the image from this other tab.
In Data, all shows well, I can see the link.
However, when, in my form Image component, I use the lookup field as source for the image, nothing shows but it works if I put the image link directly in custom.
Attaching the data screenshot and simulator screenshot for your reference with lookup and direct link

direct link works in Demo
direct link works in Demo1616×1568 301 KB

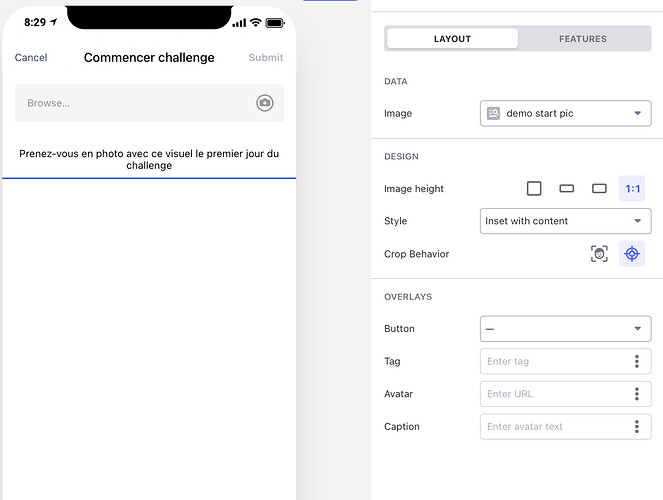

lookup is blank in Demo
lookup is blank in Demo1626×1226 106 KB
lookup is fine in Data
lookup is fine in Data1138×498 58.1 KB

If someone can shed some light that would be great

Cheers

Allan

1 Like
2

Does it work if you upload the image to Glide instead of using a Drive link?

3

Hey Man, thanks for answering so fast

No it is the same, I can see the thumbnail in Data, but still nothing in Demo.

PS: I did not even know we could upload images from Data :sweat_smile:

4

i have the same problem, image doesn’t show on form. work well on 2020 I don’t change my app and didn’t work now

1 Like
5

Have you tried uploading your image to Glide?

6

yes.

when i but my image data on a link item i have the url of my image but if i put my data on a image item nothing show

7

Can you give a sample link so we can test if we can see the image or not?

8

here it his : https://beta-decodeur-011983.glideapp.io/

select “Grafana, késako?” then “voir la reponse” and normaly there his an image before the text

9

i add a link item with the same data i put on the image and the link work (it’s at the end of the page)

10

I also have the same problem. And an old app with images in the form, which all were visible a few weeks ago is now not showing any images at all (in the form)

11

So it’s this link right?

https://user-images.githubusercontent.com/4932851/72068746-d54a9580-32f6-11ea-9352-c2bcaa2a723a.png
12

yes,

for information i ask the support about it

13

image794×512 57.6 KB

It works well for me here inside a form, using that same link in an image component.

14

Hey @ThinhDinh
But you are adding the link manually right? It breaks when the link is a lookup, setting image source as custom link works fine

15

Can confirm it does not show anything for me inside the form if I point the image component to any columns, whether it be an image column or a lookup of an image.

3 Likes
16

Me too, this is a big issue to me.

Gio

17

What happened on this issue??
I’m also experiencing it.

Not having to have images in all tables, I have created a “Ressources” table which contains images. I then create a relation to the table → create a lookup for the table to fetch an image. In the Data view it all looks fine (the image appears) but inside the layout of the app the image does not appear.
Furthermore it also does not appear when unfolding the quick view of the data in the bottom of the layout screen.

Anyone from Glide is aware of this? Surely it seems inefficient to copy-paste images across the app’s tables. Must slow the app’s performance also.

18

Firstly, is the relation a multiple or single relation?

Which component are you using to display the image?

Are you using row owners?

19

Thanks ThinhDinh.

I found the cause of the issue.

My setup: Using Google Sheets (I have later seen a warning/disclaimer in a community post against doing so - images should be hosted on a Glide server).

As soon as I created a separate table for storing the image directly within Glide and created a relation to the table, the lookup fetching the image worked.

20
